Hi, this is Min and I will talk about the meaning of Surge Impedance Loading(SIL) in this posting. SIL is a very popular concept that can be used during the analysis of power systems including transmission lines. Please see the basic concept of SIL and think about the meaning of SIL from this posting below.
Surge impedance loading (SIL) is the power load in which the total reactive power of the lines becomes zero. The reactive power generated by the shunt capacitance is consumed by the series inductance of the line.
SIL is defined as the power load in which the transmission line delivers maximum power with minimum losses. It is also known as the natural load of the transmission line.
SIL is calculated using the following formula:

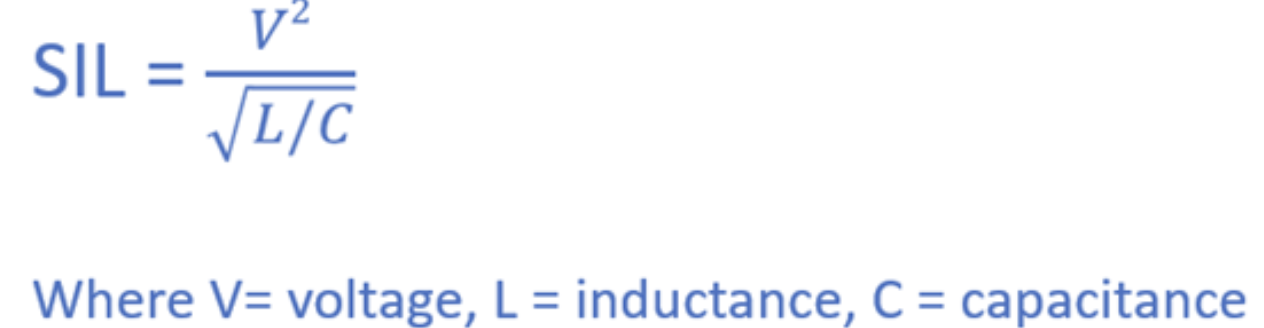

SIL = V^2 / Z_0
where:
- V is the line voltage
- Z_0 is the surge impedance of the line
The surge impedance of a line is a constant that depends on the physical characteristics of the line, such as the conductor material, conductor spacing, and insulation.
SIL is an important concept in power system planning and operation. It is used to design transmission lines to ensure that they can deliver the required power without exceeding their thermal capacity or causing voltage instability.
Example:
A 500 kV transmission line has a surge impedance of 400 ohms. The SIL of the line is therefore:
SIL = 500^2 / 400 = 625 MW

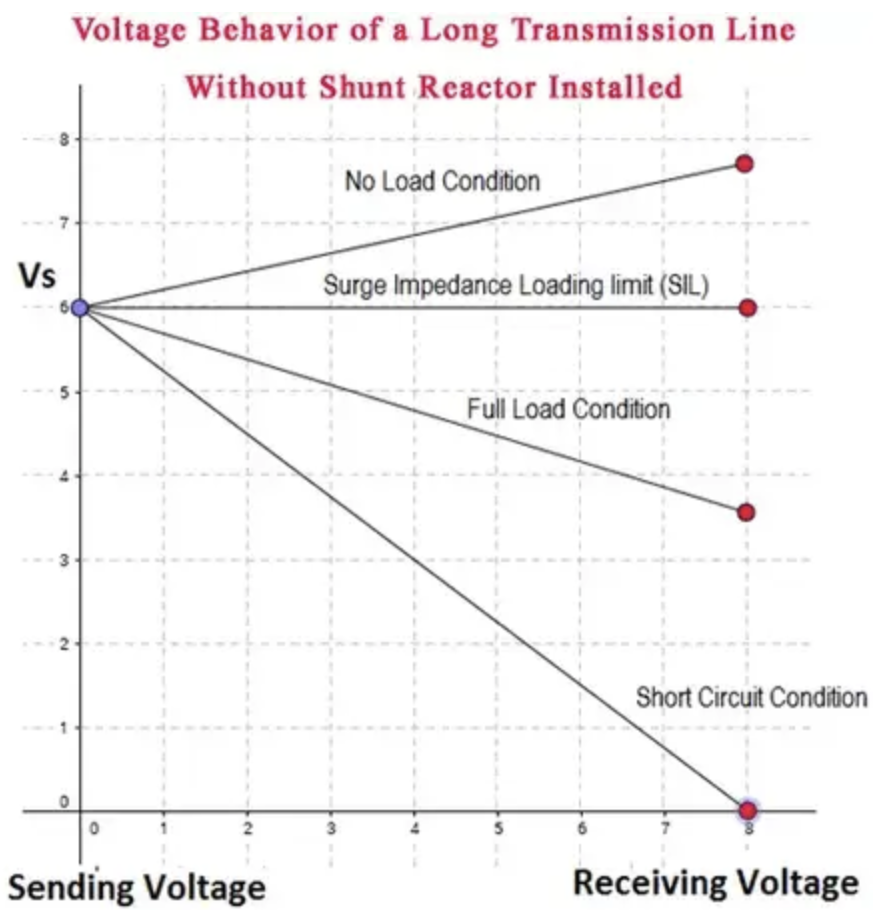

This means that the line can deliver up to 625 MW of power with minimum losses. If the line is loaded beyond its SIL, the voltage at the receiving end will drop and the line losses will increase.
Advantages of SIL:
- Minimum power losses
- Maximum power transfer capacity
- Flat voltage profile along the line
- Improved system stability
Disadvantages of SIL:
- Requires careful design of the transmission line
- May require reactive power compensation at the receiving end
- More susceptible to voltage instability in the event of a fault
I hope you can understand this concept from this post well. Thank you for your reading.
